WhisperVent™ Wall Cap
$134.99
This Exterior Wall Cap accessory was designed for use with Whisper Comfort® and Intelli-Balance® 100 ERV models. It conveniently allows both exhaust and supply airflow through a hole in the building envelope.
PAN-FV-WC10VE1 is ideal for use in smaller, multi-family applications. Can be used at CFM settings up to 100 CFM.
Description
Whisper Vent™ Wall Cap Installation Manual
Whisper Vent™ Wall Cap Specification Data
Whisper Vent™ Wall Cap

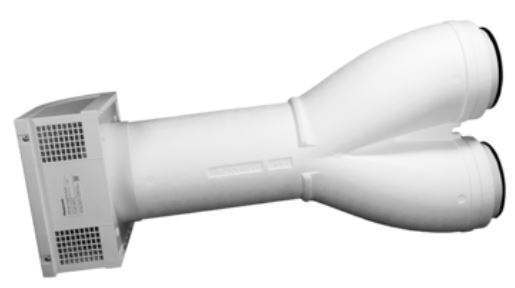

The Whisper Vent™ Wall Cap shall be designed for use with Whisper Comfort® 60 ERV and Intelli-Balance® 100 Series ERV. The optional Exterior Wall Cap accessory shall allow both exhaust and supply airflow through a single7.5″ hole in the building envelope. The dividers inside the bottom portion of the unique Y shape chamber and the wall cap shall help prevent cross contamination.
Key Features
- Airflow rated up to 100 CFM per side
- The material composition for the duct is expanded polystyrene and polypropylene for the cap
- The duct length is 26-7/8″
- The cap height is 10-3/8″ and depth of 4-15/16″
- Warranty of 3 years
