Delta BreezElite ELT80-110LED Fan/Light

$149.00

Delta BreezElite DB-ELT80-110 is ENERGY STAR® Most Efficient award product, affordable ventilation fan with adjustable high-speed options and exclusive, installer-friendly room-side installation system.

Meets and Exceeds ASHRAE 62.2

energyefficient logo

SKU: DB-ELT80-110LED

Description

Elite logoElite Bathroom Fan Install Image
Delta BreezElite ELT80-110LED is ENERGY STAR® Most Efficient award product, affordable ventilation fan with adjustable high-speed options and exclusive, installer-friendly room-side installation system.

Features:

    • ENERGY STAR® qualified with innovative brushless DC motor technology
    • Perfectly quiet operation at 0.5 sones (80 CFM), 0.7 sones (110 CFM)
    • Adjustable high speed 80 CFM or 110 CFM
    • Energy efficiency at 10.6 CFM/Watt
    • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
    • Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements
    • Includes 6″ to 4″ duct reducer

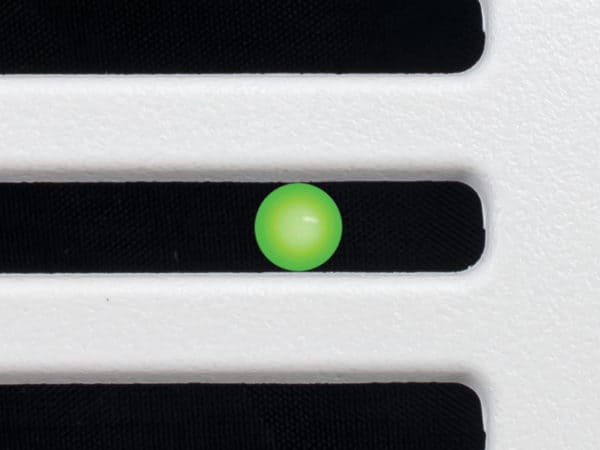

    • LED indicator light will be green when power is on
    • Annual energy cost for 24/7 operation is approximately $7.36*

*Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

CA24 logoASI logo

Installation

Click Here to Download/View Installation Guide

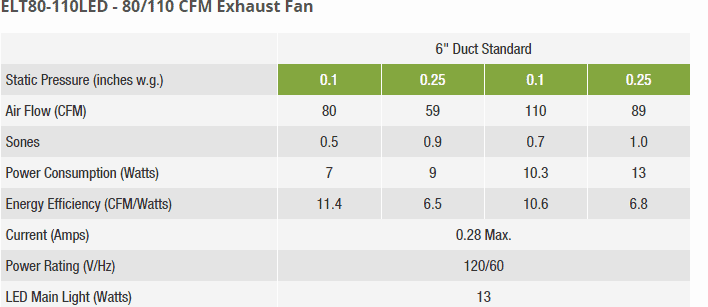

Spec Sheet

Click Here to Download/View Product Specifications Submittal Sheet

DB-ELT80-110LED-Product-Specifications.

Innovative brushless DC motor design for long life, low noise, and low power consumption
Delta Breez model ELT80-110LED has been awarded ENERGY STAR® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 0.7 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 10.3 Watts with an efficiency rating of 10.6 CFM/Watt at 0.1” static pressure; the fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
